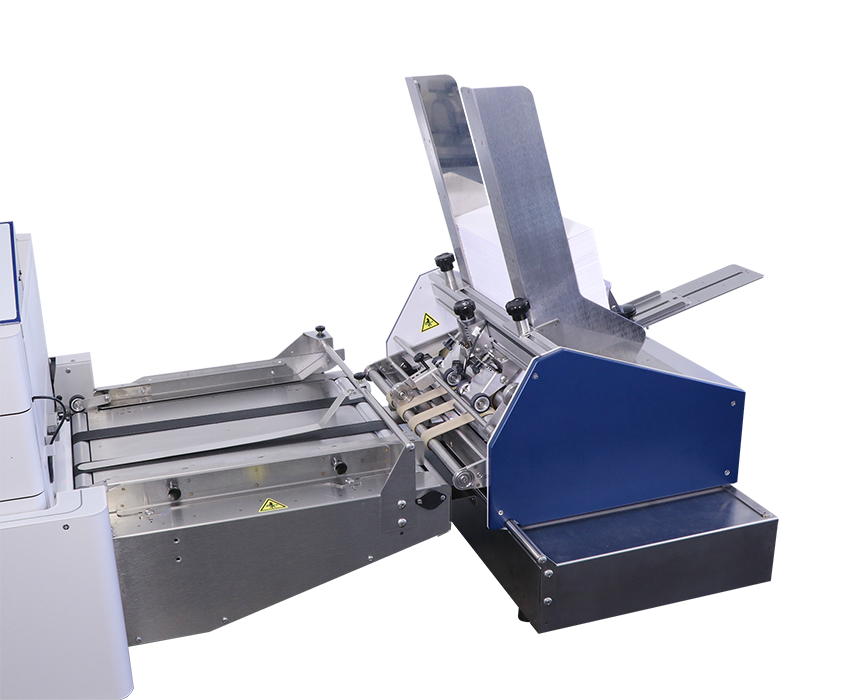

Driven by an intelligent synchronized feeder and registration system, the ColorMax9 reliably produces accurate landscape prints to maximize output capability. Featuring durable, water-resistant HP pigment-based ink, the system is designed to handle variable data and full-color graphics in a single pass.
The ColorMax9 utilizes vibrant pigment-based ink which resists fading, scratches, and water damage. The wide, print area and digital thickness control allow for media applications up to 1/2” thick and 15” wide, including stuffed envelopes, kraft paper bags, chip board and more. It has the capacity to print up to 10,000 #10 envelopes per hour.
Its intuitive 7” color touchscreen provides control over the entire process including image preview, system status, and access to up to 64 GB of stored print jobs.
Utilizing HP thermal inkjet technology, it features a long-life stationary print head with 59,000+ nozzles and integrated cleaning/capping. This allows for printing on pre-printed and windowed envelopes, and its high-capacity ink tanks are easily accessible from the front of the printer.

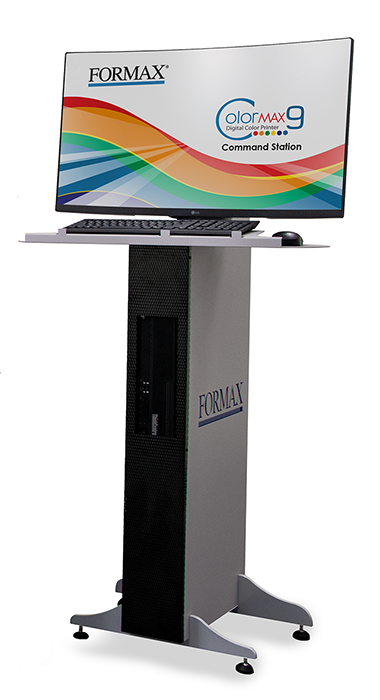

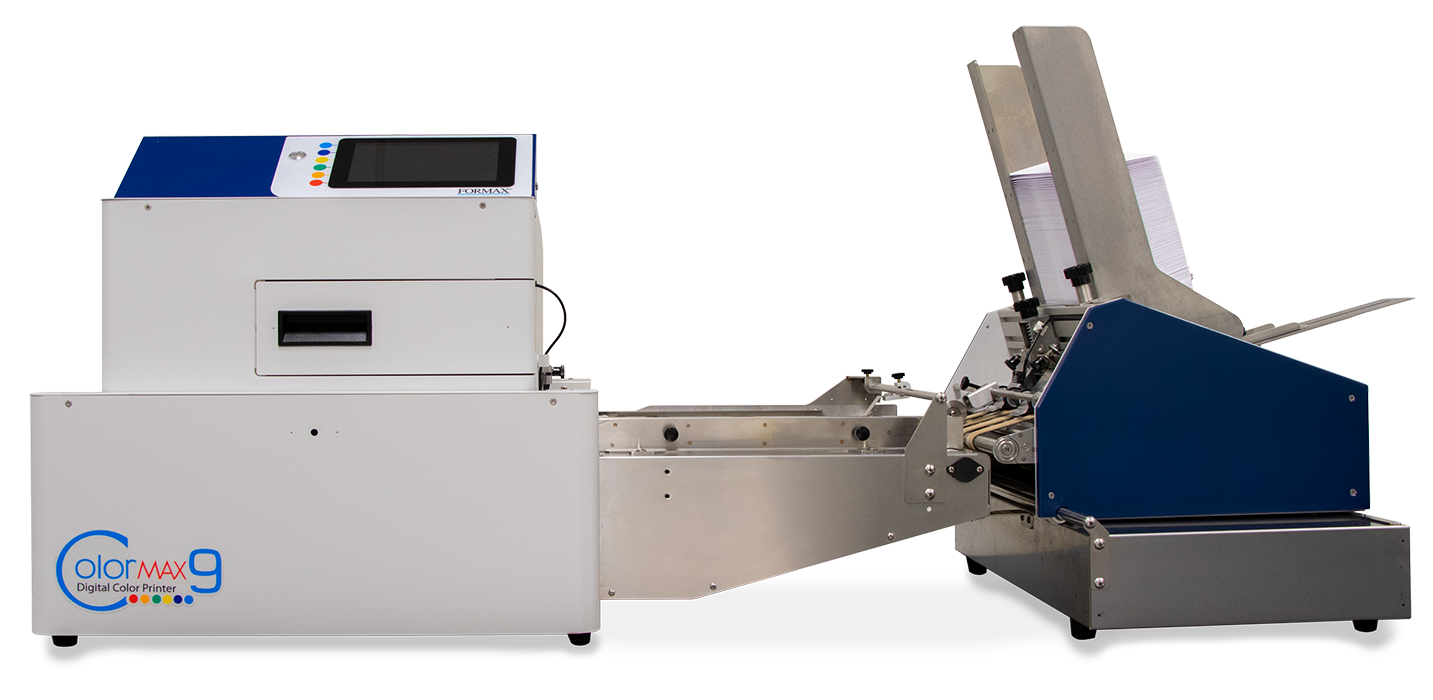

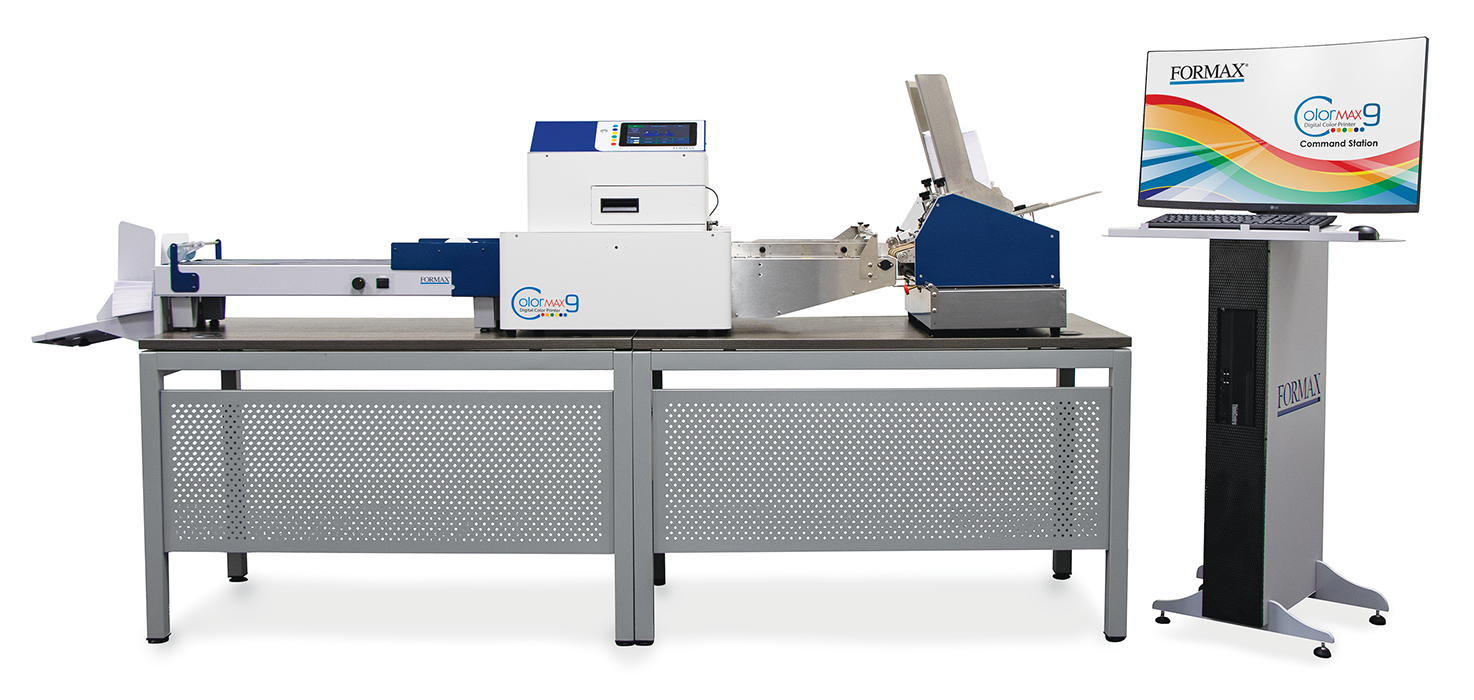

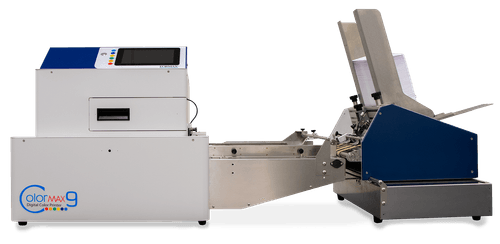

The ColorMax9 is available in three configurations with options including a 3-foot output conveyor, sturdy workbench, and the CCS9 Command Station featuring a free-standing workstation, PC, and 32” curved monitor.
With a long-life print system, rugged steel/aluminum construction, the ColorMax9 is quiet, fast, and economical for a quick return on investment, with the low cost-per-print standard that is fundamental to the ColorMax line.
Print Quality Up to 1200 x 1200 dpi
Speed: Production Up to 10,000 #10 envelopes/hour
Speed: High Quality Up to 5,000 #10 envelopes/hour
Material Size Min: 3” W x 3.75” L Max: 15” W x 15” L
Material Thickness Up to 1/2” (12.5mm)
Image Area Up to 11.7” H x 30” L (297 x 762mm)
Duty Cycle Up to 500,000 per month, 30 million total
Ink Tank Capacity C 238ml, M 233ml, Y 225ml, K 498ml
Ink Type Pigment-based inkjet
Print Technology HP Thermal Inkjet 4 Print Engine
Job Storage Up to 64 GB
Fonts Available All TrueType fonts available on PC
PC Interface USB 2.0 & Ethernet
Dimensions 60” L x 24” W x 26” H(152 x 61 x 66cm)Weight 195 lbs. (88kg) (Printer & Feeder)Electrical 110-240VAC, 50/60Hz / 2.5 A
