Roland

XG-640

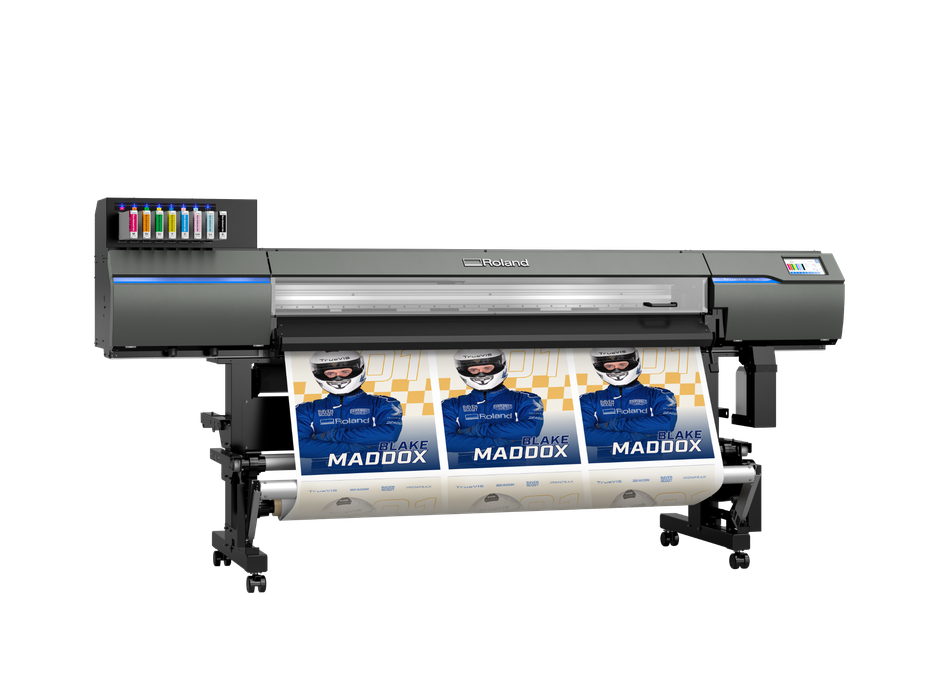

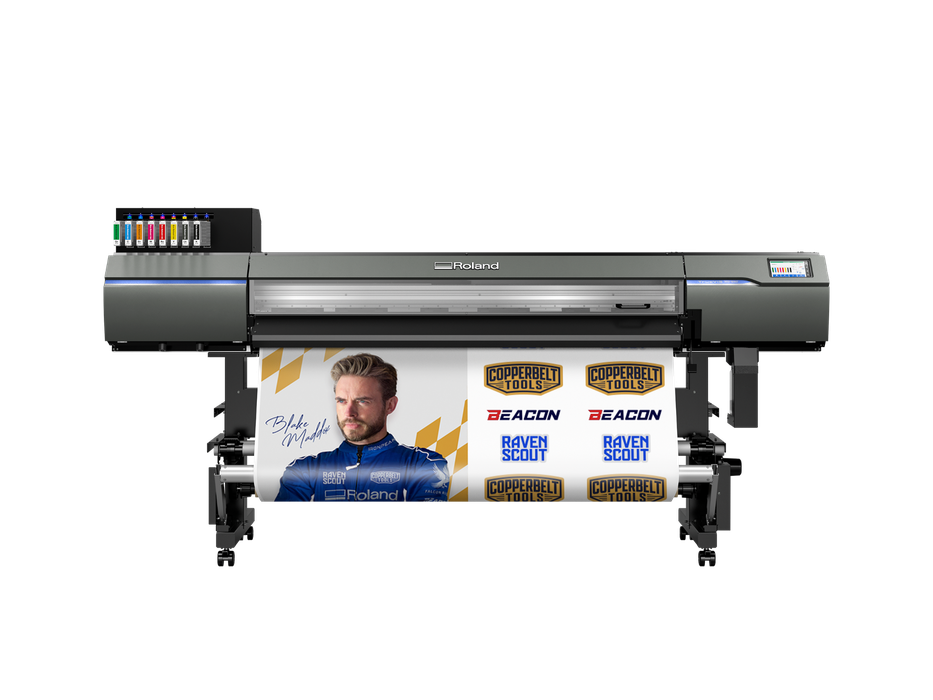

The next-generation XG-640 is Roland DG’s fastest printer/cutter ever—built for shops that need to keep jobs moving and revenue growing. Whether you’re producing vehicle wraps, decals, signs or display graphics, the XG delivers a whole new level of productivity and versatility that turns printing into profits.
Brochure

Industry-Leading Productivity

Engineered for speed and precision, the XG-640 sets a new benchmark in productivity, enabling shops to complete more jobs each day without additional labor. Dual staggered printheads and high-speed data control deliver 15% faster print speeds than competing models — without compromissing image quality.

In Standard mode, the 8-color (CMYKLcLmOrGr) configuration delivers the widest color gamut at speeds of up to 327.2 sqft/hr on vinyl. Let it run uninterrupted all night and wake up to high-quality, customer-ready prints in the morning. Higher throughput, shorter production times, and a return on investment measured in months, not years.

Expect Big Things

Roland DG pioneered the world’s first Print & Cut technology, and for over 40 years our advanced Print & Cut solutions have been trusted by users worldwide. The XG-640 continues this legacy, combining cutting-edge innovation and productivity with the reliability professionals expect.

Introducing Our Most Vibrant and Eco-Friendly TrueVIS Inks

A next-generation printer like the XG-640 demands equally impressive inks. New TR3 eco-solvent inks are specially formulated for unrivaled vibrancy and durability. TR3 White ink used with the XG-640 allows for three times greater productivity than TR2 inks used with a VG3 printer/cutter and produces graphic results that are 1.3 times more dense, enhancing window graphics and base coats. Plus, TR3 inks are GBL-free and GREENGUARD Gold certified, for safer, eco-conscious printing. These premium-quality inks are available in a choice of configurations to suit your specific needs – dual CMYK for increased speed, or 8-color (Orange, Green, Light Cyan, Light Magenta, and White) for an expanded gamut and greater color accuracy.

Included VersaWorks 7 with Compatibility for Mac

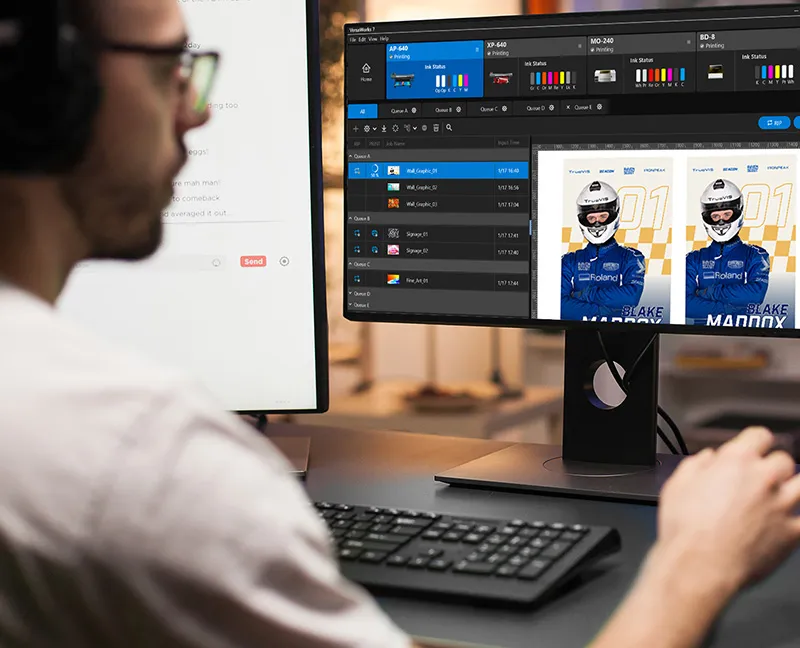

The XG-640 comes with newly developed VersaWorks 7 RIP software – Roland DG’s most powerful, intuitive RIP to date – which now supports both Windows and Mac OS operating systems. This software offers a host of useful features for effortless print management right out of the box.

Roland DG’s Industry-Leading Warranty and Support

Why Roland DG?

For over 40 years, Roland DG has led the print/cut category with unmatched performance and reliability, intuitive software, and best-in-class service. The XG-640 is no exception. It comes with:

  • U.S.-based Support and Training
  • VersaWorks 7 RIP Software (now available for macOS and Windows) included without subscription
  • Access to the Roland DG Connect platform for remote diagnostics, uptime tracking, and much more
Why Now?

Customer demand is exploding for quick-turn, on-demand graphics that can be printed, cut, and finished in-house. The XG-640 lets you do more with one device, delivering stunning graphics at a lower cost per job with lest waste and more control over margins.

  • Printing method: Piezo ink‑jet method
  • Media width: 13.2 to 64 in (335 to 1,625 mm)
  • Media thickness: Max 39.3 mil (1.0 mm) with liner (printing); max 15.7 mil (0.4 mm) with liner / 8.6 mil (0.22 mm) without liner (cutting)
  • Roll outer diameter: Max 9.8 in (250 mm)
  • Roll weight: Max 99 lb (45 kg)
  • Core diameter: 3 in (76.2 mm) or 2 in (50.8 mm)
  • Printing/cutting width: Max 62.9 in (1,600 mm)
  • Ink type: Eco‑Solvent TR3 ink cartridges (500 ml; white is 220 ml)
  • Ink color configurations:
    • Eight-color: Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Orange, Green
    • Seven-color: CMYK, Orange, Green + White (2 cartridges)
    • Four-color: CMYK
  • Printing resolution: Max 1,800 dpi
  • Print speed: Up to 819 sqft/hr (~76 m²/h) in draft/4‑color mode
  • Cutting speed: 0.39 to 11.8 in/s (10 to 300 mm/s)
  • Blade force: 30 to 500 gf (500 gf is peak instantaneous)
  • Blade type: Roland CAMM‑1 series blade
  • Offset: 0.0 to 59 mil (0.000 to 1.500 mm)
  • Software resolution (cutting): 0.98 mil/step (0.025 mm/step)
  • Media heating system:
    • Print heater: 86 to 113 °F (30 to 45 °C)
    • Dryer: 86 to 131 °F (30 to 55 °C)
  • Connectivity: Ethernet (100BASE‑TX / 1000BASE‑T, auto‑switching)
  • Power‑saving: Automatic sleep feature
  • Power requirements: 100‑120 / 220‑240 V a.c., 50/60 Hz, 8.9 A (120 V) / 4.5 A (240 V)
  • Power consumption:
    • During operation: Approx. 1,180 W
    • Sleep mode: Approx. 50 W
  • Acoustic noise level:
    • Operation: ≤ 66 dB(A)
    • Standby: ≤ 56 dB(A)
  • Dimensions (W × D × H): 113.7 × 29.5 × 55.8 in (2,886 × 748 × 1,415 mm)
  • Weight: 433 lb (196 kg)
  • Operating environment:
    • Temperature: 68 to 89.6 °F (20 to 32 °C)
    • Humidity: 35 to 80 % RH (no condensation)
  • Non‑operating environment:
    • Temperature: 41 to 104 °F (5 to 40 °C)
    • Humidity: 20 to 80 % RH (no condensation)
